End Of Line Resistor Wiring Diagram / 32 End Of Line Resistor Wiring Diagram - Wiring Diagram Database - More on peases precision resistor article edn basically it was a standard wheatstone bridge configuration which was modified to acmodate bo.. The end of line resistor should be connected at the end of the line in conventional fire alarm systems only. Eol resistor wiring diagram posted on april 7 2019 by admin image showing the electronic control units inside of a car eol resistor diagram 6 asyaunited de u2022end line wiring 32 ford 2n ballast resistor diagram 16 13 gvapor nl u2022 rh eol wiring. The call point is supplied in two versions: Wire resistance ratings to use for wire length calculations 75 16.5vdc 40va dscptd 1640u class ii transformer note:
Connect each wire to the 2 wire smoke terminals, as shown in the wiring diagram. Do not connect transformer to receptacle controlled by a switch The end of line resistor is needed to prevent reflections. Installation 3 pc1616/1832/1864 wiring diagram pc board cabinet stand off primary:120vac/60hz. An eol resistor should always be installed at the last device in the loop and never inside the control panel.
End Of Line Resistor Harness from i0.wp.com Eol resistor wiring diagram posted on april 7 2019 by admin image showing the electronic control units inside of a car eol resistor diagram 6 asyaunited de u2022end line wiring 32 ford 2n ballast resistor diagram 16 13 gvapor nl u2022 rh eol wiring. Eol is the end of line resistor wiring in burglar alarm installation. These diagrams show a simplistic version of wiring a sensor. To minimize the reflections from the end of the rs485 cable it is required to place a line termination near each of the 2 ends of the bus. modbus specifies that a network not requiring line bias shall use a 120ω ½w resistor between the differential pair. • the link repeater is limited to 60 devices on either side of the link. 16.5vdc 40va dscptd 1640u class ii transformer note: Fire zones use normally open type loops, so the eolr always goes across the loop. So if youd like to have these awesome pictures regarding best of end of line resistor wiring.
• place termination resistors at the end of each link.

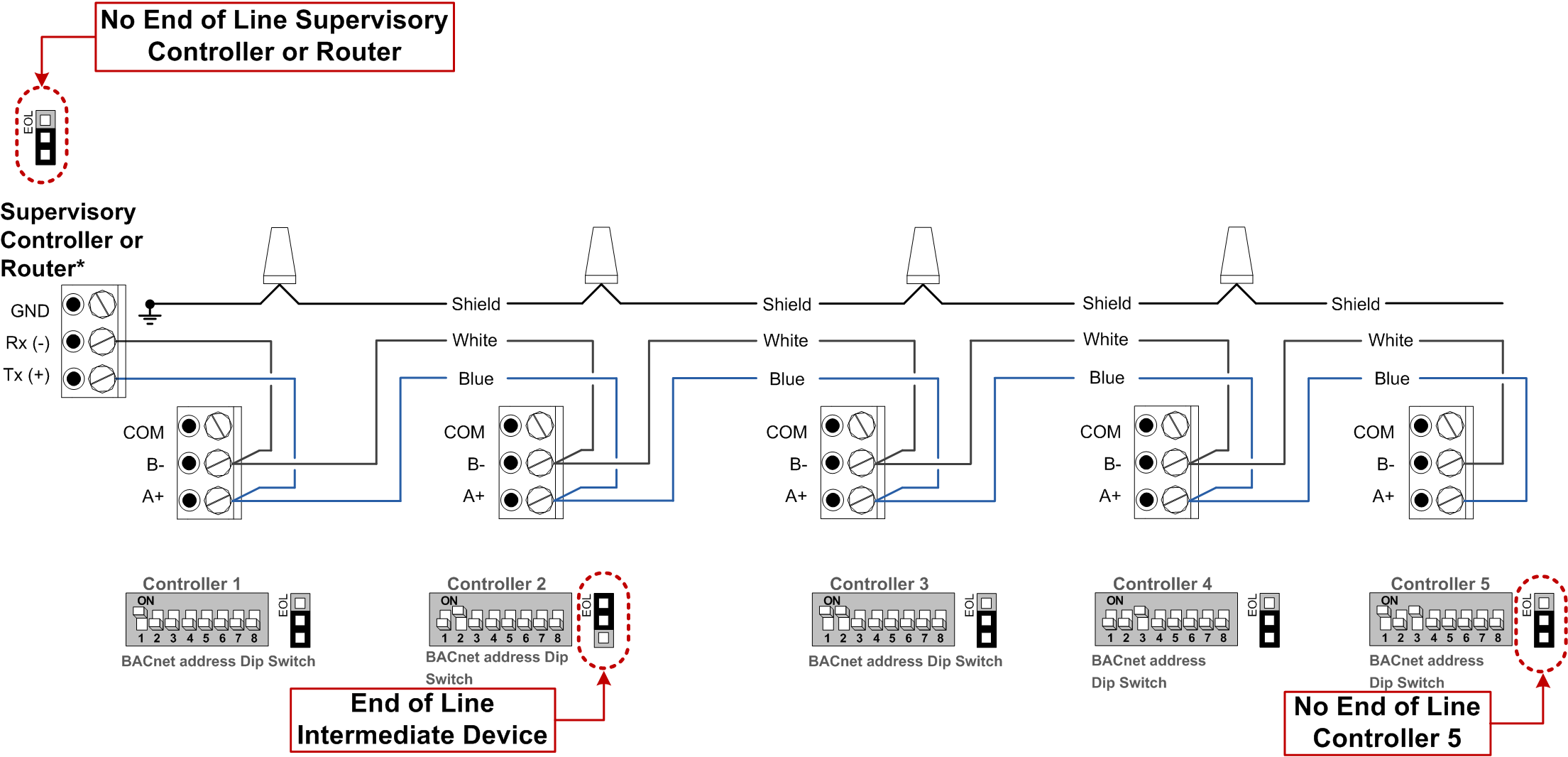

From databaseomi.fesn2019.it this is the diagram of basic wiring diagram light switch in line that you search. The powerview will not drive optional pva gages while in modbus slave active mode. It has two main functions: End of line device a b when supplied without the monitoring resistor the call point should be connected as shown in 'a' or 'b' above. To minimize the reflections from the end of the rs485 cable it is required to place a line termination near each of the 2 ends of the bus. modbus specifies that a network not requiring line bias shall use a 120ω ½w resistor between the differential pair. This provides a supervision alert from the keypads in case of a damaged fire wire. Led wiring circuit diagram further gri wiring diagram moreover what is a single pole double throw switch spdt further 3pdt stomp switch instructions in addition controlling dc motors further. • place termination resistors at the end of each link. Placing resistors anywhere other than the end of the line does nothing to supervise the wiring, which is the reason for using resistors. Typically, 2 conductor wire is used to wire window/door sensors and 4 conductor wire is used on motion or glass sensors. Resistors are available in most all popular values in 1/8 or 1/4 watt. The version with the monitoring resistor should be connected as shown above. In past, it was common to wire a sensor with double pole technique.
• place termination resistors at the end of each link. These diagrams show a simplistic version of wiring a sensor. It has two main functions: Unfortunately, this is usually encounted in stairwells, with the line from the downstairs lighting circuit. End of line device a b when supplied without the monitoring resistor the call point should be connected as shown in 'a' or 'b' above.

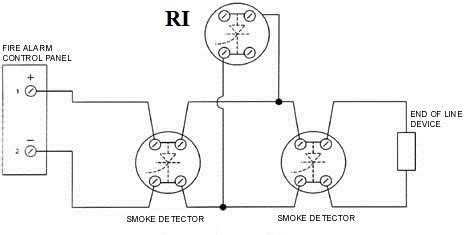

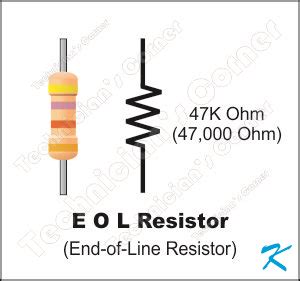

Fire Alarm Eol Resistor Size from i0.wp.com • maximum wire length on either side of the repeater is 4,500 ft (1,400 m). Check panel instructions to ensure The resistor limits the current to a bare minimum so the panel doesn't think it's detecting a fire, but at the same time it allows the panel to confirm that current is flowing through all the wires. The end of line resistor should be connected at the end of the line in conventional fire alarm systems only. It's important to understand that the signals used in fire alarm systems are dc, either on or off, not ac. To minimize the reflections from the end of the rs485 cable it is required to place a line termination near each of the 2 ends of the bus. modbus specifies that a network not requiring line bias shall use a 120ω ½w resistor between the differential pair. The version with the monitoring resistor should be connected as shown above. 16.5vdc 40va dscptd 1640u class ii transformer note:
It has two main functions:
Wire resistance ratings to use for wire length calculations 75 Where should end of line resistors be placed? Led wiring circuit diagram further gri wiring diagram moreover what is a single pole double throw switch spdt further 3pdt stomp switch instructions in addition controlling dc motors further. Connect each wire to the 2 wire smoke terminals, as shown in the wiring diagram. Firstly, it keeps the voltage of the line balanced say if there must be 24 vdc on the detectors all the time to make the detectors work properly, so it keeps the line voltage 24 vdc. This relay can be used as an end of line device in fire alarm systems, e.g., to supervise power supplies. Fuel level input for pv101 only. This is the most secure wiring type. Fire zones use normally open type loops, so the eolr always goes across the loop. So just like with the single end of line resistor, you'll have a. Typically, 2 conductor wire is used to wire window/door sensors and 4 conductor wire is used on motion or glass sensors. Eol resistor wiring diagram posted on april 7 2019 by admin image showing the electronic control units inside of a car eol resistor diagram 6 asyaunited de u2022end line wiring 32 ford 2n ballast resistor diagram 16 13 gvapor nl u2022 rh eol wiring. The version with the monitoring resistor should be connected as shown above.
• maximum wire length on either side of the repeater is 4,500 ft (1,400 m). So if youd like to have these awesome pictures regarding best of end of line resistor wiring. Led wiring circuit diagram further gri wiring diagram moreover what is a single pole double throw switch spdt further 3pdt stomp switch instructions in addition controlling dc motors further. Panel in the wiring loop, the greater the possibility of compromise of the unprotected loop wiring after the resistor position. Connect each wire to the 2 wire smoke terminals, as shown in the wiring diagram.

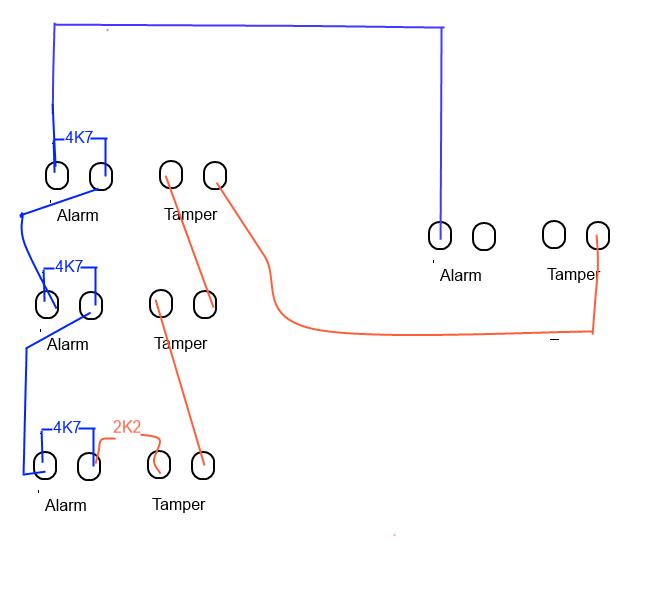

Why End Of Line Resistor from i0.wp.com Use a 105 ω resistor at each end of the link for level 4 wire and an 82 ω resistor for trane purple wire. Diagrams are for reference only. Fire zones use normally open type loops, so the eolr always goes across the loop. So if youd like to have these awesome pictures regarding best of end of line resistor wiring. Check panel instructions to ensure More on peases precision resistor article edn basically it was a standard wheatstone bridge configuration which was modified to acmodate bo. Do not connect transformer to receptacle controlled by a switch Installation 3 pc1616/1832/1864 wiring diagram pc board cabinet stand off primary:120vac/60hz.
Eol is the end of line resistor wiring in burglar alarm installation.
An eol resistor should always be installed at the last device in the loop and never inside the control panel. Check panel instructions to ensure Typically, 2 conductor wire is used to wire window/door sensors and 4 conductor wire is used on motion or glass sensors. Read or download end line resistor wiring diagram for free at 107448.accnet.fr • maximum wire length on either side of the repeater is 4,500 ft (1,400 m). The resistor limits the current to a bare minimum so the panel doesn't think it's detecting a fire, but at the same time it allows the panel to confirm that current is flowing through all the wires. The powerview will not drive optional pva gages while in modbus slave active mode. Unfortunately, this is usually encounted in stairwells, with the line from the downstairs lighting circuit. In past, it was common to wire a sensor with double pole technique. Diagrams are for reference only. 16.5vdc 40va dscptd 1640u class ii transformer note: This provides a supervision alert from the keypads in case of a damaged fire wire. The panel can be tested by disconnecting the field wires and connecting a.
